MaxTek Quartz Crystal Sensors
Maxtek was a pioneering brand in global Quartz Crystal Microbalance (QCM) technology and thin-film deposition monitoring and control. After being acquired by INFICON in 2007, its core technologies have been deeply integrated into the INFICON product portfolio.
How to Choose the Right Quartz Monitor Crystals
Base Frequency: 6 MHz is the industry mainstream standard; 5 MHz is used for specific legacy equipment. Ensure the frequency matches your monitor, otherwise the system will not oscillate.
Size & Shape: Standard 0.550 inch / 14mm diameter with plano-convex design optimizes energy distribution, enhancing measurement sensitivity and crystal lifetime.
Gold Electrode: Chemically extremely stable, the preferred coating for low-stress materials and general metal deposition, with an exceptionally long shelf life.
Silver Electrode: Offers superior thermal conductivity, making it ideal for high-thermal-load processes such as e-beam evaporation, effectively suppressing measurement drift caused by temperature rise.
Alloy Electrode: Designed for high-stress processes, effectively buffering mechanical impact of optical materials on the substrate, preventing frequency jumps and extending process continuity.
Application Selection Guide: Alloy electrodes are preferred for optical multilayer stacks; gold electrodes are recommended for OLED evaporation; silver electrodes are advised for semiconductor thick-metal processes to optimize heat dissipation.
Two Convenient Packaging Options

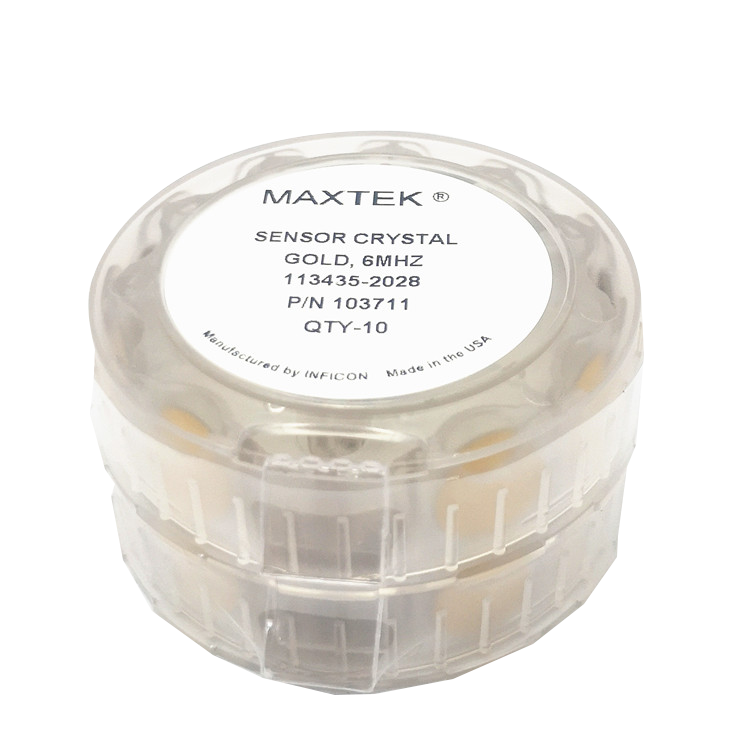

Cleanroom Compatible Dispenser
Holds 10 oscillator discs and dispenses directly into the sensor holder. Designed for cleanroom environments, compatible with Teflon® tweezers or the included tool for easy handling.

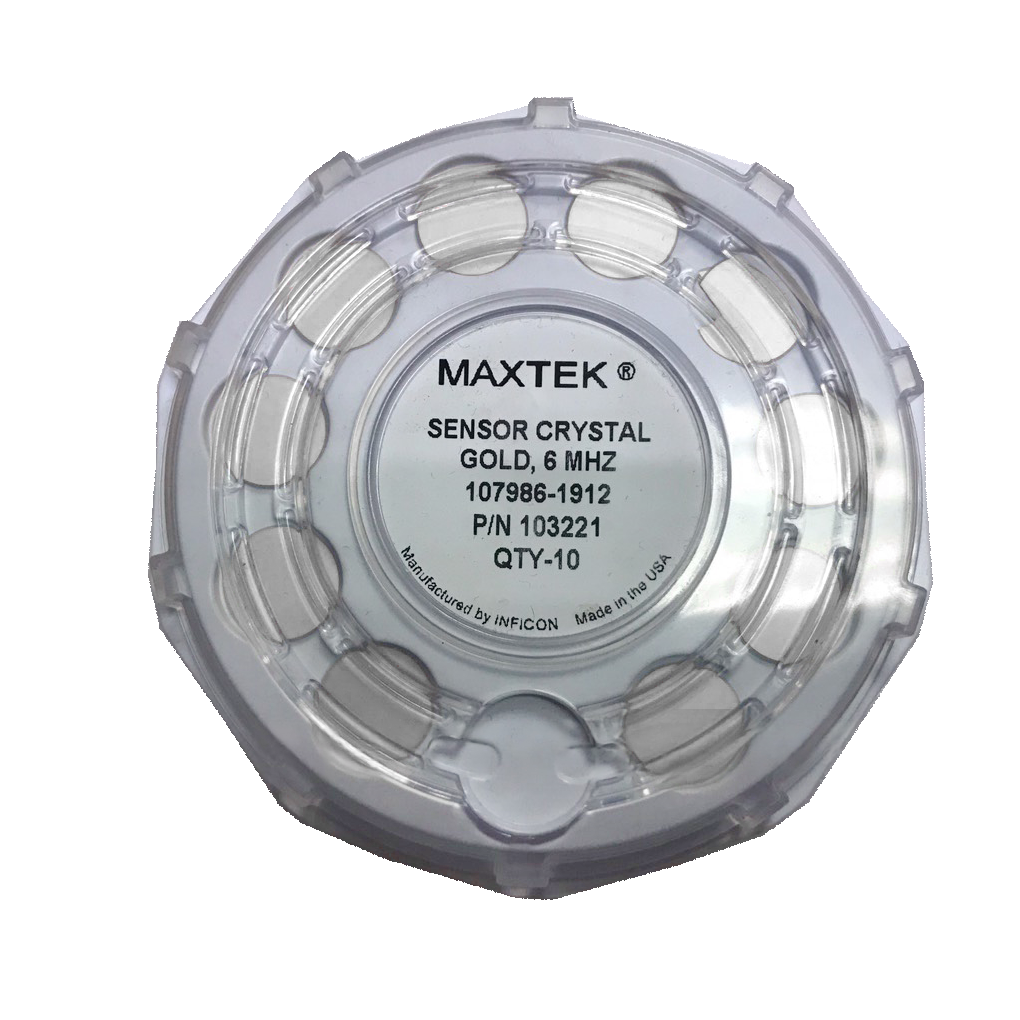

Flatpack Carousel Dispenser
Holds 10 oscillator discs, extractable via vacuum pencil or Teflon tweezers. Flat design enables convenient stacking and storage, maximizing space efficiency.
Product Selection Table
Part Number
Maxtek Crystals
MaxTek
Other Recommendations
Inficon
Inficon crystal oscillators are a world-leading brand in quartz film thickness monitoring, offering high sensitivity and high-resolution measurements.
Inficon
Inficon crystal oscillators are a world-leading brand in quartz film thickness monitoring, offering high sensitivity and high-resolution measurements.
JJK
JJK is a leading crystal oscillator brand in mainland China. Its main selling point is providing high-cost-performance crystal oscillators, positioned as 'quality comparable to imports, but with a more competitive price'.
JJK
JJK is a leading crystal oscillator brand in mainland China. Its main selling point is providing high-cost-performance crystal oscillators, positioned as 'quality comparable to imports, but with a more competitive price'.
FilTech
Filtech is a very well-known professional brand in the field of quartz crystal monitoring and has now been acquired by Inficon. In the thin-film vacuum deposition industry (such as electron beam evaporation, thermal evaporation, sputtering), Filtech has high market recognition for its cost performance and supply flexibility.
FilTech
Filtech is a very well-known professional brand in the field of quartz crystal monitoring and has now been acquired by Inficon. In the thin-film vacuum deposition industry (such as electron beam evaporation, thermal evaporation, sputtering), Filtech has high market recognition for its cost performance and supply flexibility.
