Inficon Quartz Monitor Crystals
INFICON is a global leader in vacuum measurement and process control. Its Quartz Monitor Crystals (commonly known as Quartz Crystal Monitor, QCM) and supporting quartz crystal sensors are regarded as the "industry standard" in thin-film deposition industries such as semiconductor manufacturing, optical coating, and OLED production.
How to Choose the Right Quartz Monitor Crystals

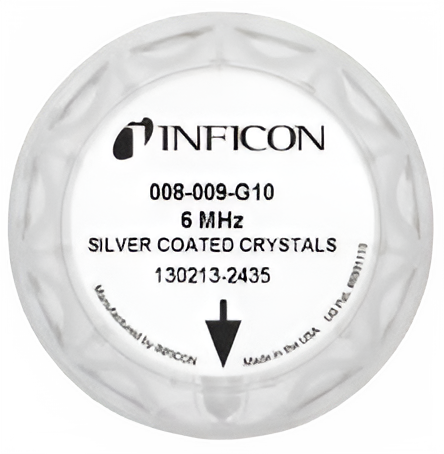

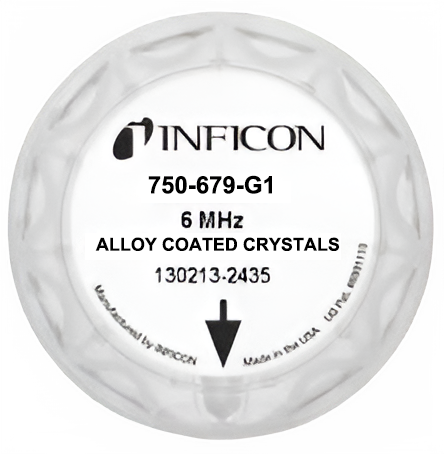

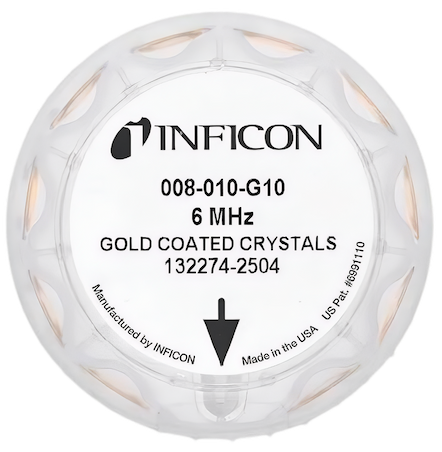

INFICON's ongoing research into Quartz Monitor Crystals characteristics drives continuous improvements, aimed at delivering the highest reliability for your process. For most applications, we recommend gold electrode oscillator discs. However, silver electrode oscillator discs provide superior performance in high heat load processes such as sputtering, and may improve oxide deposition. Alloy electrode oscillator discs are recommended for optical coating with dielectric materials and semiconductor processes involving high-stress materials.

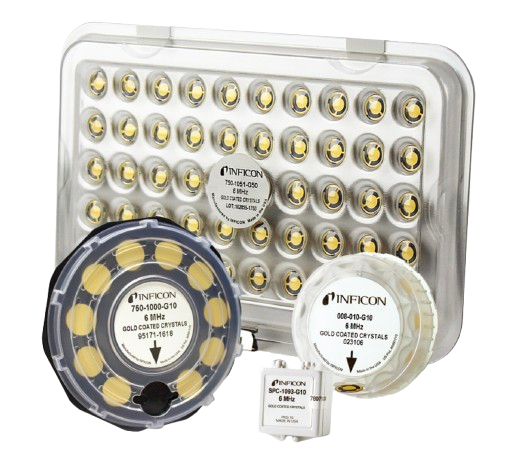

Four Convenient Packaging Options
Cleanroom Compatible Dispenser
Holds 10 oscillator discs and dispenses directly into the sensor holder. Designed for cleanroom environments, compatible with Teflon® tweezers or the included tool for easy handling.

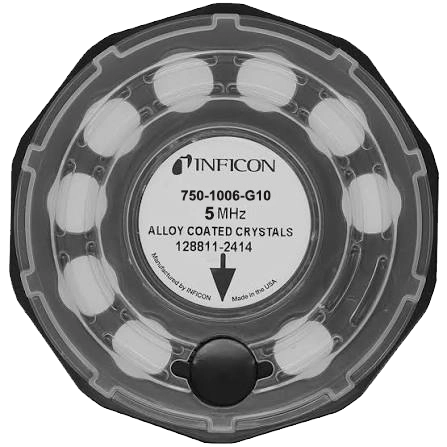

Flatpack Carousel Dispenser
Holds 10 oscillator discs, extractable via vacuum pencil or Teflon tweezers. Flat design enables convenient stacking and storage, maximizing space efficiency.
Compact Box
Compact box designed specifically for 10 INFICON oscillator discs. Ideal for routine storage, occupying minimal shelf space.
50-Pack Bulk Package
Features transparent rectangular plastic packaging, suitable for high-volume production lines. Easy to count and stack, recommended for use with a vacuum pencil for efficient dispensing.
Product Selection Table
Part Number
INFICON Crystals
Other Recommendations
Maxtek
Maxtek is a company with a deep history and technological accumulation in the field of thin-film deposition measurement. Most notably, it was acquired by industry giant INFICON in 2007 and now exists as an important brand under INFICON.
Maxtek
Maxtek is a company with a deep history and technological accumulation in the field of thin-film deposition measurement. Most notably, it was acquired by industry giant INFICON in 2007 and now exists as an important brand under INFICON.
JJK
JJK is a leading crystal oscillator brand in mainland China. Its main selling point is providing high-cost-performance crystal oscillators, positioned as 'quality comparable to imports, but with a more competitive price'.
JJK
JJK is a leading crystal oscillator brand in mainland China. Its main selling point is providing high-cost-performance crystal oscillators, positioned as 'quality comparable to imports, but with a more competitive price'.
FilTech
Filtech is a very well-known professional brand in the field of quartz crystal monitoring and has now been acquired by Inficon. In the thin-film vacuum deposition industry (such as electron beam evaporation, thermal evaporation, sputtering), Filtech has high market recognition for its cost performance and supply flexibility.
FilTech
Filtech is a very well-known professional brand in the field of quartz crystal monitoring and has now been acquired by Inficon. In the thin-film vacuum deposition industry (such as electron beam evaporation, thermal evaporation, sputtering), Filtech has high market recognition for its cost performance and supply flexibility.
